Calculate potential on the axis of a ring due to charge Q Uniformly distributed along the ring of radius R.



Important Questions on Electrostatic Potential and Capacitance

MEDIUM
12th CBSE
IMPORTANT
Find the equation of the equipotential for an Infinite cylinder of radius r0, carrying charge of linear density λ.
MEDIUM
12th CBSE
IMPORTANT
Two point charges of magnitude +q and -q are placed at (-d/2,0,0) and (d/2,0,0), respectively. Find the equation of the equipotential surface where the potential is zero ?
MEDIUM
12th CBSE
IMPORTANT
A parallel plate capacitor is filled by a dielectric whose relative permittivity varies with the applied voltage V as ε=αV where α=2V-1. A similar capacitor with no dielectric is charged to 78V. It is then connected to the uncharged capacitor with the dielectric. Find the final voltage on the capacitors.
MEDIUM
12th CBSE
IMPORTANT
A capacitor is made of two circular plates of radius R each, separated by a distance d<<R. The capacitor is connected to a constant voltage. A thin conducting disc of radius r<<R and thickness t<<r is placed at a centre of the bottom plate. Find the minimum voltage required to lift the disc if the mass of the disc is m
HARD
12th CBSE
IMPORTANT
In a quark model of elementary particles, a neutron is made of one up quarks [charge (2/3) e] and two down quarks [charges -(1/3) e]. Calculate the electrostatic potential energy of the neutron and compare it with its mass 939 MeV. Repeat the above exercise for a proton which is made of two up and one down quark.
HARD
12th CBSE
IMPORTANT
Two metal spheres, one of radius R and the other of radius 2R, both have same surface charge densityσ . They are brought in contact and separated. What will be the new surface charge densities on them?
HARD
12th CBSE
IMPORTANT

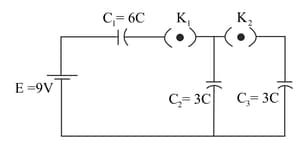

In the circuit shown in Figure initially K1 is closed and K2 is open. What are the charges on each capacitors. Then K1 was opened and K2 was closed (order is important), What will be the charge on each capacitor now? [C=1μF]

Question Image

HARD
12th CBSE
IMPORTANT
Calculate potential on the axis of a disc of radius R due to a charge Q, uniformly distributed on its surface.
