MEDIUM
Physics
IMPORTANT
Earn 100

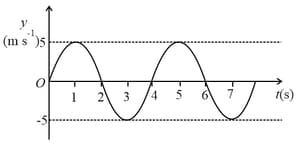

The variation of velocity of a particle executing SHM with time is shown in the figure. The velocity of the particle when a phase change of π/6 takes place from the instant it is at one of the extreme positions will be

Question Image

50% studentsanswered this correctly

Important Questions on Linear and Angular Simple Harmonic Motion

MEDIUM
Physics
IMPORTANT

The variation of velocity of a particle executing SHM with time is shown in the figure.the displacement of the particle from the mean position when there is phase change of π/6

Question Image

MEDIUM
Physics
IMPORTANT

The variation of velocity of a particle executing SHM with time is shown in the figure.The acceleration of the particle when there is a phase change of π/6

Question Image

MEDIUM
Physics
IMPORTANT

The variation of velocity of a particle executing SHM with time is shown in the figure.The maximum displacement and acceleration of the particle when there is a phase change of π/6  respectively are

Question Image

EASY
Physics
IMPORTANT
A block of mass $1 \mathrm{~kg}$ hangs without vibrating at the end of a spring whose force constant is $200 \mathrm{~N} / \mathrm{m}$ and which is attached to the ceiling of an elevator. The elevator is rising with an upward acceleration of $g / 3$ when the acceleration suddenly ceases. The angular frequency of the block after the acceleration ceases is
MEDIUM
Physics
IMPORTANT
A vertical spring carries a 5 kg body and is hanging in equilibrium, an additional force is applied so that the spring is further stretched. When released from this position, it performs 50 complete oscillations in 25 s, with an amplitude of 5 cm. The additional force applied is
MEDIUM
Physics
IMPORTANT

A particle is free to move along the X-axis has potential energy given by Ux=k1-e-x2 for -x+,  where k is a positive constant of appropriate dimensions. Then:

HARD
Physics
IMPORTANT

Two particles move parallel to the x-axis about the origin with same amplitude 'a’ and frequency ω. At a certain instant, they are found at a distance a3 from the origin on opposite sides but their velocities are in the same direction. What is the phase difference between the two?

EASY
Physics
IMPORTANT
The potential energy of a particle executing SHM along the x-axis is given by U=U0-U0cosax. What is the period of oscillation?
